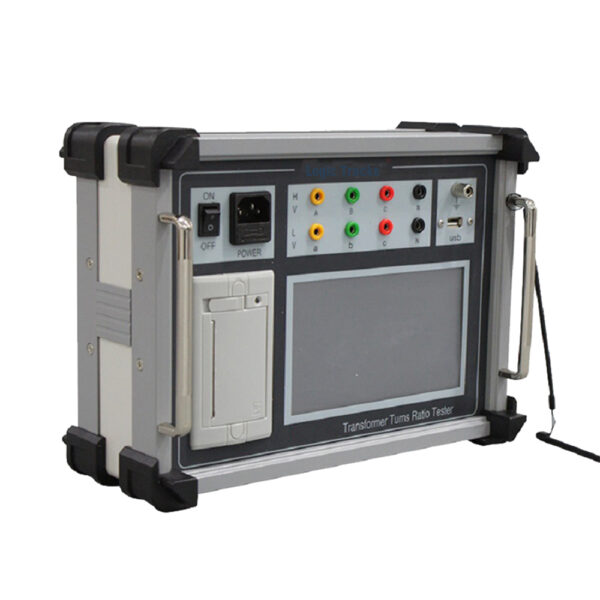

Three phase transformer Turns Ratio Meter TRM300 makes automatic measurements with no need to set any parameter and automatically completes 3 phase ratio and vector group measurement in just 3 seconds by pressing a single key, Basic Accuracy is 0.1%

Description

Three phase transformer Turns Ratio Meter TRM300 uses a programable source which can output singe phase two phase & 3phase sine wave output with adjustable output frequency.

Three phase transformer Turns Ratio Meter TRM300 makes automatic measurement with no need to set any parameter and automatically completes 3 phase ratio and vector group measurement in just 3 seconds by pressing single key

Built in 3 phase source can measure turns ratio of different connection group such as Y/y, Y/d, D/y, D/d.

For unknown vector group it can measure the vector group, polarity to clearly display first & second winding connection vector group.

It can also indicate on load tap changer position, first & secondary voltage oscillogram and phase relationship. As well as fist & second harmonics voltage to facilitate the analysis of transformer failure

Features

•Measures Ratio, Polarity, Vector group, deviation

•5 inch Touch Screen Display

•Built-in 3 phase source

•Test Voltage 12V, 24V, 40V, 80V, 160V

•Oscillogram & Harmonics Analysis

•USB Port for communication

•Fully Automatic Testing by pressing single
  key

•Performs fast & accurate test, about 3 second to complete all test

•Built-in thermal printer

•Detects on load tap changer position and indicate current position

•Can Test CT, PT Ratio & Polarity Test

•Built in 128M memory to store result

Measurement

Measures Ratio, Polarity, Vector group & Deviation

Specification

•Power Supply

•Measuring Range

•Accuracy

•Output Voltage

•Resolution

•Dimensions

•Weight

•Operating Temp.

•Humidity Range

•Display

•Printer

•Interface

•230V ± 10% @ 50Hz

•0.8 to 20000

•0.1% (0.8-1000), 0.2% (1000-5000), 0.3% (5000-20000)

•12v, 24v,40v, 80v, 160v Optional

•0.0001

•320x230x140 mm

•4.5kg

•10°C to 45°C

•10% to 85%

•5″ Touch Screen

•Built in Thermal Printer

•USB

Standard Accessories

1. Mains cord                    = 1
2. Ground Lead                = 1
3. Printer paper                = 1
4. Extra Fuse                     = 2
5. Black Extension cord  = 1
6. Red Extension cord     = 1
7. R Test lead                     = 2
8. Y Test lead                     = 2
9. B Test lead                     = 2
10. Black Test lead           = 2
11. Cary Case                     = 1
