Sale 10%

₹62,500.00

(1 customer review)

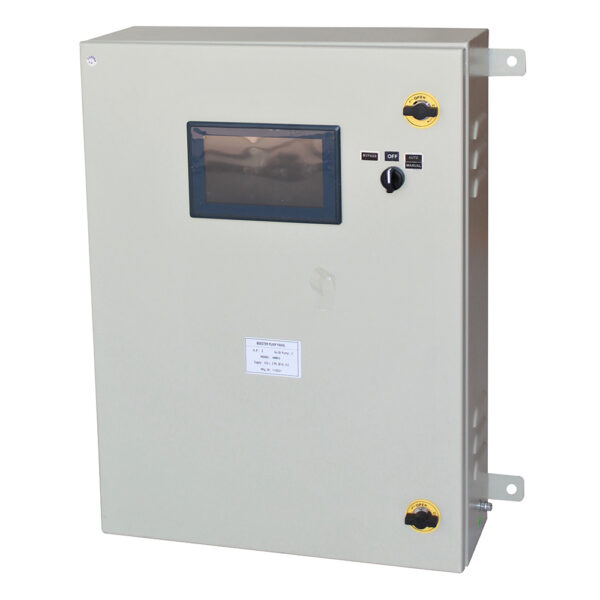

VFD pump control panel is complete solution for the everyday need of controlling pressure booster pumps for the industrial or domestic water needs. EcoDrive has been designed to give accuracy & high performance for the superior control to the system. EcoDrive is comes with the most feature in its segment. EcoDrive is truly comes with optimum control of the system.

SKU: ECODRIVE Categories: , Tags: , , , , ,
  • Previous Product
  • Intelligent pump controller
  • Next Product
  • Pressure Pump Panel

Description

VFD pump control panel introduction

EcoDrive is complete solution for the everyday need of controlling pressure booster pumps for industrial or domestic water need. EcoDrive has been designed to give high performance and best protection for the superior control to the pumps. EcoDrive comes with the most feature in its segment. EcoDrive truly comes with optimum control of the booster system.

Benefits of VFD pump control panel

• Each pump controlled through Variable frequency drive (VFD) to ensure power saving.

• Energy efficient operation and constant pressure ensured by speed control.

• Energy saving of 20 to 35% depend on the system

• Required small size pressure tank

• By pass system works in case of failure of any electronics part. Directly start & stop pump by pressure switch

Function of VFD pump control panel

• Adjustable pressure to meet high performance of the system. Pressure bandwidth can be user programable as per demand.

• Total 5 cycle of On-time and off-time can be set to operate as per time. Real timer inbuilt.

• 7inch touch screen display offer easy operation

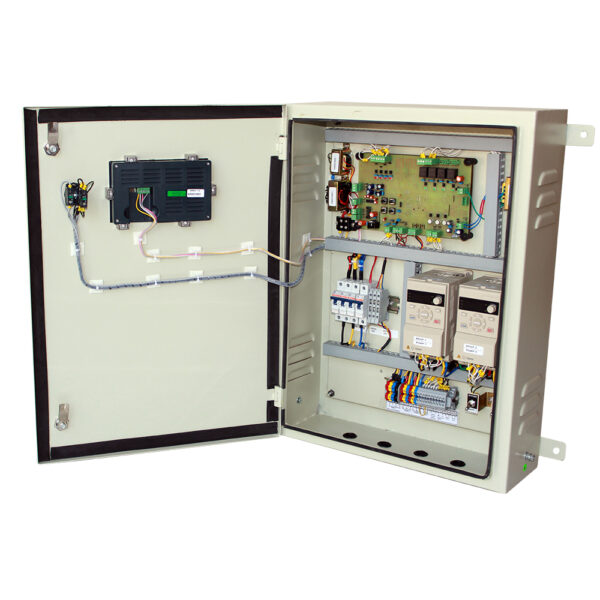

Compact design VFD pump control panel

• Easy user interface for better operation of the system.

• Fast commissioning of ready-to-connect, pre-assembled & tested ok system.





Features

Reliable & Safe

Integrated voltage and current protections . Three modes of control to the system.

Auto: Control through VFDs & Pressure Transducer

Manual: Control through Switchgear & Pressure Switch Bypass: Direct supply for emergency use.

Display

7 inch capacitive HMI display.

Easy and convenient graphical user interface.

Real-time Operation

System can be operated in real-time for energy saving. Real-time fault data logging.

Real Cascading

In multi pump system, pumps will be controlled to ensure equal wear and tear for each pump.

Cascading will not be according to time but as per requirement of pressure.

Service and Stability

Entire system is made in India and fully repairable. Repairing of the system doesn’t require any pre-requistic knowledge of the system.

Safety & Privacy

For repairing of pumps, pump selection can be done. Each parameter is password protected.

Pump Protection

• Over Voltage Protection

• Under Voltage Protection

• Over Current Protection

• Under Current Protection

• Reverse Phase Protection

• Short Circuit Protection

• Single Phasing Prevention

1 review for VFD Pump Control Panel

  1. Desai deep –

    working well

Add a review

Your email address will not be published. Required fields are marked *

All supply side protection like high voltage, low voltage, phase failure, phase reversal provided

Yes our all vfd panel can maintain constant pressure in pipeline

We can interface n number of pumps in vfd panel
