Hot water circulation panel

Introduction of Hot water circulation panel :

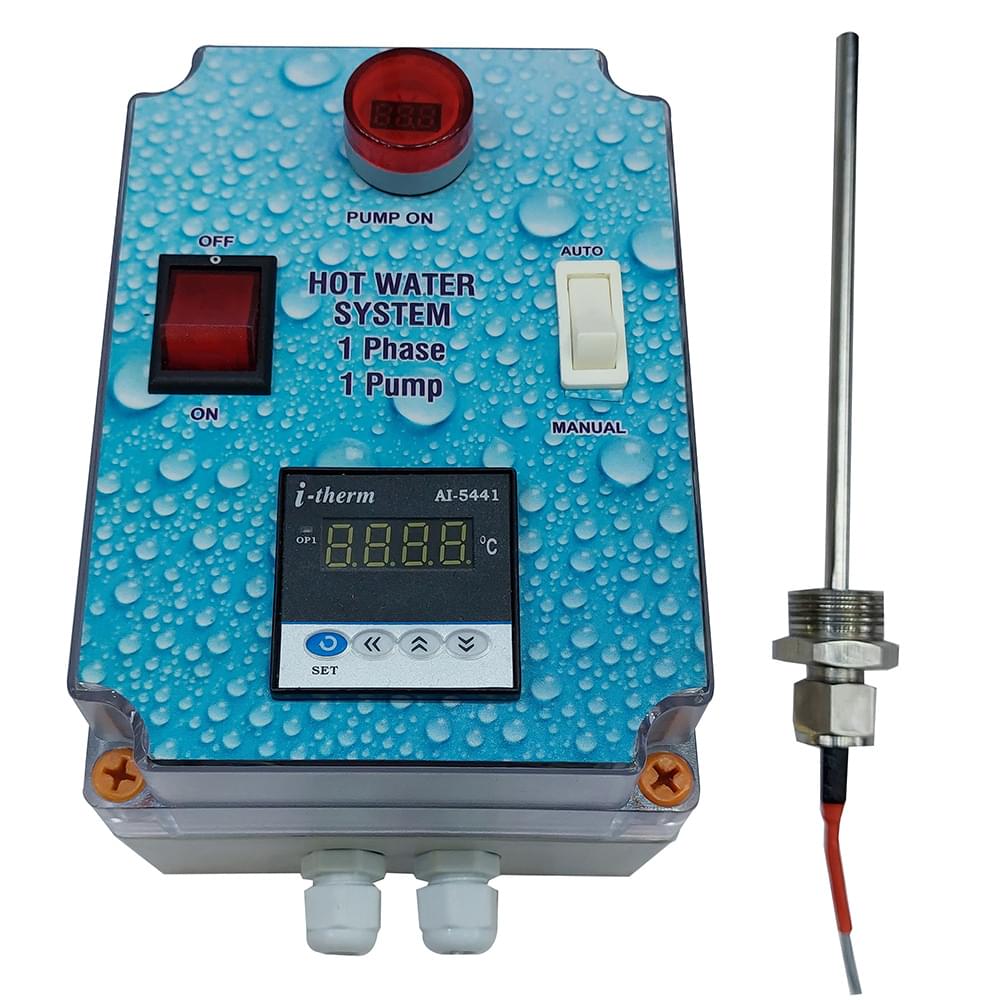

Hot water circulation panel is suitable for hot water circulation systems installed in hotel, resorts, hospitals. Hot water circulation panel comes with inbuilt temperature controller and real timer. hot water circulation panel also comes with standard temperature sensor PT100 or RTD.

A “Hot Water Circulation Panel” is a system designed to ensure that hot water is readily available at various points in a building, such as in homes, commercial buildings, or industrial facilities. The system minimizes water wastage and improves energy efficiency by circulating hot water through the plumbing system, so users don’t have to wait for water to heat up when they turn on the tap.

Key Components of a Hot Water Circulation Panel:

1. **Circulation Pump:**
– The heart of the system, the pump is responsible for moving hot water from the water heater through the supply lines and back through a return line. The pump ensures that hot water is always circulating within the pipes, keeping it close to the faucets.
– Pumps may have variable speeds to adjust the flow according to demand, and they can be controlled by timers, thermostats, or sensors.

2. **Thermostat/Temperature Sensor:**
– This component monitors the temperature of the water in the system. When the water temperature drops below a preset level, the pump is activated to circulate the hot water until the desired temperature is restored.
– The thermostat can be set to maintain a specific temperature range, which helps conserve energy by preventing the pump from running unnecessarily.

3. **Timer/Controller:**
– A timer or controller manages the operation of the circulation pump. It can be programmed to run the pump during specific times of the day when hot water demand is highest, reducing energy consumption during off-peak hours.
– Some systems include smart controllers that can learn usage patterns and optimize the circulation based on actual hot water use.

4. **Check Valve:**
– The check valve ensures that water flows in one direction only, preventing backflow. This is crucial in maintaining a constant supply of hot water and preventing cold water from entering the hot water line.

5. **Return Line:**
– The return line is a dedicated pipe that loops back from the farthest point of the hot water supply back to the water heater. This allows the hot water to circulate continuously through the system.
– In retrofitted systems, the cold water line may be used as a return line to avoid additional plumbing work.

6. **Water Heater:**
– The hot water circulation panel is integrated with a water heater, which provides the hot water. The water heater may be tankless or storage-type, and its capacity should be sufficient to meet the building’s hot water needs.

7. Isolation Valves:
– These valves allow for maintenance of the circulation system without shutting off the entire water supply. They are installed at strategic points, such as near the pump and the water heater.

8. Flow Sensor:
– A flow sensor detects when water is being used in the system and can trigger the pump to start circulating hot water. This is often used in systems without a dedicated return line, where the circulation is demand-based.

9. Insulation:
– The pipes and the circulation panel are usually insulated to minimize heat loss during circulation. Proper insulation improves energy efficiency by keeping the water hot as it circulates through the system.

How It Works:

When a user opens a hot water tap, the system ensures that hot water is delivered almost instantly, thanks to the continuous or on-demand circulation. The circulation pump pushes the hot water through the supply lines, and the water that cools down returns to the water heater via the return line, where it is reheated and sent back into circulation.

The system can be controlled by a timer, thermostat, or motion sensor, ensuring that the pump runs only when necessary. This reduces energy consumption while ensuring hot water is always available when needed.

Benefits :

– **Water Conservation:** Reduces the amount of water wasted while waiting for hot water to reach the tap.
– **Energy Efficiency:** Optimizes the use of the water heater and reduces the energy required to heat water by maintaining a constant temperature.
– **Convenience:** Provides instant hot water, improving comfort and convenience for users.
– **Reduced Wear and Tear:** Limits the strain on the water heater by reducing the number of heating cycles.

Applications:

– **Residential Buildings:** Enhances the efficiency and comfort of hot water systems in homes.
– **Commercial Buildings:** Used in hotels, restaurants, and office buildings where the demand for hot water is frequent and consistent.
– **Industrial Facilities:** Applied in processes where hot water is needed continuously or on demand.

A well-designed hot water circulation panel helps to save time, water, and energy, making it a valuable component in modern plumbing systems.

Check out product video on : youtube

Checkout our other product : booster pump control panel
